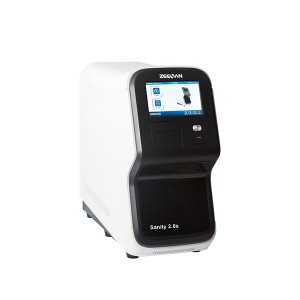

The instrument adopts the mode of the 10-tubes cartridge, and is equipped with the functions of heating, UV disinfection, negative pressure of extraction operating room, etc. That is able to process 1~8 samples in a single run. The instrument has the characteristics of short extraction time, high extraction efficiency, high level of automation and suitable for various nucleic acid extraction kit of magnetic beads method. The intellectualized designed process is controlled by software completely that would auto-complete the nucleic acid isolation and purification process, which save the time and energy of laboratory technician and make the nucleic acid extraction simple. The system can be widely used in fields of clinical gene research, molecular biological experiment and medicolegal expertise, etc.
The instrument is composed of mechanical parts (including vibration module, magnetic rod module, magnetic rod sleeve module and module of compartment entrance and exit doors) and electrical parts (including control module and heating module).
Principle
The magnetic rod adopted in the extraction module of the instrument is a permanent magnet, which drives the movement of the magnetic rod frame and the magnetic rod sleeve through mechanical transmission. Through the up-and-down movement of the magnetic rod sleeve, the sample is uni-formly mixed, cracked, combined, washed and eluted in the proper nucleic acid extraction kit with the magnetic bead method. The transfer of magnetic beads and magnetic bead-target compound is realized by the coordinated movement of magnetic rod and magnetic rod sleeve. Through the separation of magnetic rod and magnetic rod sleeve, the release of magnetic beads and magnetic bead-target compound can be done. Working with the relevant nucleic acid extraction kit with the magnetic bead method, the nucleic acid extraction system can run the corresponding software program, and automatically complete the isolation and purification process of nucleic acids.
Specifications
Dimensions | 290 mm×430 mm×450 mm |
Weight | 14 kg |
Power Supply | AC 100V-240 V, 50/60 Hz, |
Power | 120 VA |
Throughput | 1~8 samples |
Sample Volume | 1 μL~2000 μL |
Sample Processing Time | 20~50 minutes |
Technology | Magnetic-particle technology |
Temperature Control Module | Room temperature~98°C |
Program Saving Capacity | ≥ 500 units |
Running Mode | Multi-gear adjustable oscillation mixed mode |
Disinfection | Time-gated UV disinfection |
Control Mode | Touchscreen |
Compatible Kits
Cat. No. | Product |
607104 | Lab-Aid Virus RNA Extraction Kit |
607105 | Lab-Aid 824 MTB DNA Extraction Kit |
607106 | Lab-Aid 824s DNA Extraction Kit |
607107 | Total RNA Blood kit (Lab-Aid) |
CE-IVD Marked
