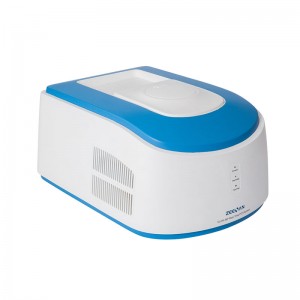

SLAN-48P Real-Time PCR System


Real-time PCR thermal cycler with 4 fluorescence channels for up to 48 samples

Product Detail

Based on polymerase chain reaction (PCR) and real-time fluorescence monitoring technology, the SLAN®-48P real time PCR system is intended for performing qualitative or quantitative detection of nucleic acid samples (DNA/RNA) derived from the human body or pathogens, as well as post-PCR analysis of the amplified nucleic acid by melting curve analysis. The SLAN®-48P real-time PCR system is used exclusively within a laboratory and its users should be trained in PCR technology and instrument operation and be familiar with related operations.

The instrument can perform PCR amplification and real-time fluorescence monitoring of each tube simultaneously. After amplification, the SLAN®-48P operating software will analyze the amplification data; perform qualitative/quantitative analysis or melting curve analysis, and display and print results for each sample automatically, for example, the initial concentration.


A wide range of Zeesan diagnostic testing kits is validated with SLAN systems.


Main Applications


  • Detection of clinical pathogens
  • Basic scientific research
  • Genetic screening
  • Food hygiene inspection
  • Customhouse import & export quarantine inspection
  • Public health and epidemiology
  • Detection of animal and plant pathogens




Power Supply 230V~, 50Hz
Dimensions (W×D×H) 386×534×258mm
Weight 16 Kg
Energy Consumption < 500VA
Noise Level < 55 dB (A)
Number of Samples 48 × 0.2mL
Sample Volume 15 ~ 50μl
Temperature Range 4 ~ 99 ℃
Accuracy of Temperature ± 0.10 ℃
Uniformity of Temperature ± 0.10 ℃
Max. Ramp Rate 4.0℃/s
Heating/cooling Method Peltier and Joule
Hot Lid Automatic Hot Lid
Power-off Protection Yes
Segments in each Program Max. 9
Holding Time of each Step 00:01~ 99:99 (mm: ss)
Number of Channels 4, extendable to 6
Dye/probe to be detected FAM, SYBR-Green, HEX, JOE, VIC, ROX, Texas-Red, Cy5
Sensitivity ≥ one copy
Range of Linearity 100 ~ 1010 copies/mL
Reproducibility CV< 1.00%


CE-IVD Marked
